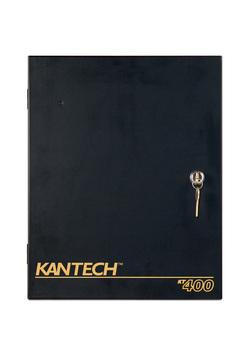

KT-400 Door Controller -Supports four readers -Onboard Ethernet 128-bit AES-encrypted communication with the EntraPass system ensures a high degree of network security -Control the occupancy level in a defined location with the anti-passback feature -100,000 cards capacity and provides up to 20,000 concurrent events in stand-alone mode -256 outputs (four onboard) provide scalability -Communicates with the EntraPass Gateway only when an event has occurred, ensuring low network bandwidth consumption (Special and Corporate Editions only) -Verify and configure IP settings with a built-in web configuration page -Supervised door lock outputs with internal or external power supply -LEDs provide important controller status and diagnostic information -Additional battery supervision and monitoring help ensure controller functionality |

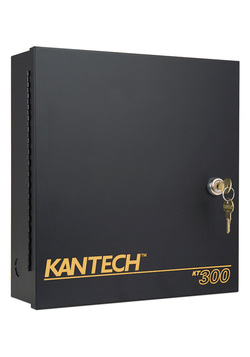

KT-300 Door Controller
-Controls two doors and easily links to a network -Update the firmware directly from system workstation -Fast, up to 115,200 baud -Ready to go, no DIP switches or jumpers to set -5V and 12V reader power -Interfaces with an external alarm system -Supervises battery conditions and reports low battery/no battery status to the system -Automatic trouble reporting -All power outputs are individually protected against short circuits and surges by a self-resetting PTC -Choice of two memory capacities, 128K or 512K |

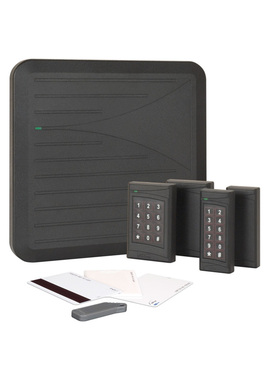

Proximity Card Readers and Cards
Proximity readers continuously transmit a low-level fixed radio frequency (RF) signal that provides energy to the card. When the card is held at a certain distance from the reader, the RF signal is absorbed by a small coil inside the card that powers up the card’s microchip which contains a unique identification code. Once powered, the card transmits the code to the reader. The whole process is completed in microseconds. The big advantage of proximity over other technologies lies in its simplicity. There are no moving parts, no mechanical wear, no slots, and no read heads to maintain. The reader can be concealed inside walls or special enclosures and poses even fewer problems when surface-mounted because it has no opening with which to jam or tamper. The proximity card is extremely secure and practically impossible to duplicate. Proximity cards are less prone to physical damage or loss, saving you money in reduced card replacement costs. Read ranges depend primarily on the reader. The larger the read range, the larger the reader’s concealed antenna and, hence, the size of the reader. A reader’s read range is always specified using standard cards. If the card’s coil is smaller, as in thin photo ID cards, keytag or keytag type cards, it may reduce the read range by up to 40%. There is a great variety of proximity readers designed for different environments including vandal resistant mullion mounts, smaller decor styles, and integrated keypad/reader units. |
